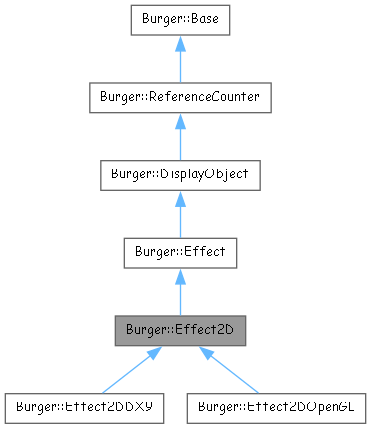

Inheritance diagram for Burger::Effect2D:

[legend]

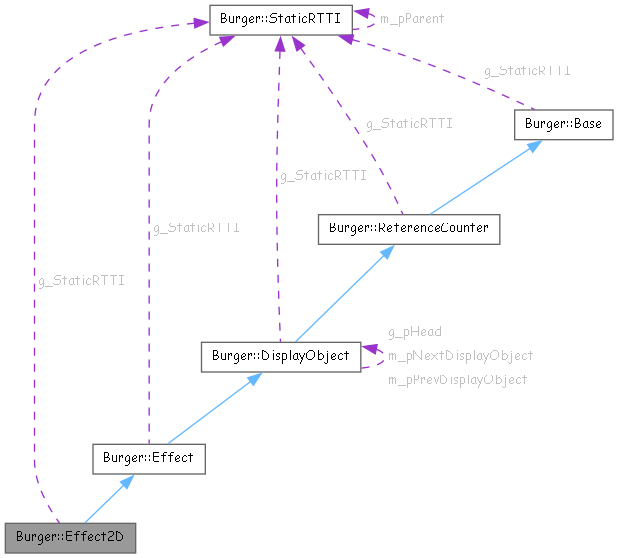

Collaboration diagram for Burger::Effect2D:

[legend]

Classes
struct	Vertex

Public Member Functions
const Burger::StaticRTTI *	get_StaticRTTI (void) const noexcept override
	Get the description to the class.

	Effect2D (Display pDisplay, const uint_t pVertexMembers)
	Default constructor for an Effect2D.

virtual void	SetPosition (float fX, float fY, float fWidth, float fHeight)=0
	Set the location of where to draw the 2D texture.

virtual void	SetPosition (const Vector4D_t *pPosition)=0
	Set the location of where to draw the 2D texture.

Public Member Functions inherited from Burger::Effect
	Effect ()
	Standard constructor.

virtual	~Effect ()
	Standard destructor.

virtual void	Release (Display *pDisplay) override
	Release the shaders.

D3DPixelShader *	GetPixelShader360 (void) const
	Get the pointer to the Xbox 360 Pixel shader instance.

D3DVertexShader *	GetVertexShader360 (void) const
	Get the pointer to the Xbox 360 Vertex shader instance.

D3DDevice *	GetDevice360 (void) const
	Get the pointer to the Xbox 360 device instance.

uint_t	GetProgramID (void) const
	Get the OpenGL program ID for the compiled effect.

IDirect3DPixelShader9 *	GetPixelShaderDX9 (void) const
	Get the pointer to the DirectX 9 Pixel shader instance.

IDirect3DVertexShader9 *	GetVertexShaderDX9 (void) const
	Get the pointer to the DirectX 9 Vertex shader instance.

IDirect3DDevice9 *	GetDeviceDX9 (void) const
	Get the pointer to the DirectX 9 device instance.

Public Member Functions inherited from Burger::DisplayObject
DisplayObject *	GetNext (void) const
	Get the next display object in the global linked list.

DisplayObject *	GetPrevious (void) const
	Get the previous display object in the global linked list.

virtual uint_t	CheckLoad (Display *pDisplay)=0
	Load data onto the video display card.

Public Member Functions inherited from Burger::ReferenceCounter
const Burger::StaticRTTI *	get_StaticRTTI (void) const noexcept override
	Get the description to the class.

	ReferenceCounter () noexcept
	Sets the reference count to zero.

virtual	~ReferenceCounter ()
	Destructor.

void	AddRef (void) noexcept
	Increase the reference count by 1.

void	Release (void) noexcept
	Decrease the reference count by 1.

Public Member Functions inherited from Burger::Base
const char *	get_class_name (void) const noexcept
	Get the name of the class.

virtual	~Base () noexcept=default
	Destructor.

Static Public Attributes
static const Burger::StaticRTTI	g_StaticRTTI
	Default constructor for an Effect2DOpenGL.

Static Public Attributes inherited from Burger::Effect
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Static Public Attributes inherited from Burger::DisplayObject
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Static Public Attributes inherited from Burger::ReferenceCounter
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Static Public Attributes inherited from Burger::Base
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Protected Attributes
int_t	m_iEffect2DPosition
	(OpenGL only) Index for the position

Protected Attributes inherited from Burger::Effect
D3DPixelShader *	m_pPixelShader
	(Xbox360 only) Pixel shader

D3DVertexShader *	m_pVertexShader
	(Xbox360 only) Vertex shader

D3DDevice *	m_pDevice
	(Xbox360 only) parent device

union {

struct {

IDirect3DPixelShader9 * m_pPixelShader
	DirectX9 Pixel shader. More...

IDirect3DVertexShader9 * m_pVertexShader
	DirectX9 Vertex shader. More...

IDirect3DDevice9 * m_pDevice
	DirectX9 parent device. More...

} m_DX9
	DirectX 9 specific data. More...

struct {

uint_t m_uProgramID
	OpenGL Program ID for the compiled shader. More...

} m_GL
	OpenGL specific data. More...

}	m_ShaderData
	Union of vertex/pixel shader data.

Protected Attributes inherited from Burger::DisplayObject
DisplayObject *	m_pNextDisplayObject
	Pointer to the next DisplayObject.

DisplayObject *	m_pPrevDisplayObject
	Pointer to the previous DisplayObject.

Private Member Functions
	Effect2D (const Effect2D &)=delete

Effect2D &	operator= (const Effect2D &)=delete

	Effect2D (Effect2D &&)=delete

Effect2D &	operator= (Effect2D &&)=delete

Additional Inherited Members
Static Public Member Functions inherited from Burger::DisplayObject
static DisplayObject *	GetFirstObject (void)
	Get the first display object in the global linked list.

static void	ReleaseAll (Display *pDisplay)
	Release all display objects.

Protected Member Functions inherited from Burger::Effect
void	ReleaseGL (void)
	Release the OpenGL data.

void	ReleaseDX9 (void)
	Release the DirectX 9 data.

Protected Member Functions inherited from Burger::DisplayObject
	DisplayObject (void)
	Add this display object to the global linked list.

virtual	~DisplayObject ()
	Remove this display object from the global linked list.

Static Protected Attributes inherited from Burger::DisplayObject
static DisplayObject *	g_pHead = NULL
	Global pointer to the linked list of display objects.

Constructor & Destructor Documentation

◆ Effect2D() [1/3]

Burger::Effect2D::Effect2D ( const Effect2D & )

privatedelete

◆ Effect2D() [2/3]

Burger::Effect2D::Effect2D ( Effect2D && )

privatedelete

◆ Effect2D() [3/3]

Burger::Effect2D::Effect2D	(	Display *	pDisplay,
		const uint_t *	pVertexMembers )

Default constructor for an Effect2D.

Parameters

pDisplay	Pointer to the current display
pVertexMembers	Pointer to a description to the vertex entries

Member Function Documentation

◆ get_StaticRTTI()

const Burger::StaticRTTI * Burger::Effect2D::get_StaticRTTI ( void ) const

overridevirtualnoexcept

Get the description to the class.

This virtual function will pull the pointer to the StaticRTTI instance that has the name of the class. Due to it being virtual, it will be the name of the most derived class.

Returns: Pointer to a global, read only instance of StaticRTTI for the true class

Reimplemented from Burger::Effect.

Reimplemented in Burger::Effect2DDX9, and Burger::Effect2DOpenGL.

◆ operator=() [1/2]

Effect2D & Burger::Effect2D::operator= ( const Effect2D & )

privatedelete

◆ operator=() [2/2]

Effect2D & Burger::Effect2D::operator= ( Effect2D && )

privatedelete

◆ SetPosition() [1/2]

void BURGER_API Burger::Effect2D::SetPosition ( const Vector4D_t * pPosition )

pure virtual

Set the location of where to draw the 2D texture.

Parameters

pPosition Pointer to a vector with an X coordinate from 0.0f to 1.0f, a Y coordinate from 0.0f to 1.0f, a width of the texture from 0.0f to 1.0f, a height of the texture from 0.0f to 1.0f

Implemented in Burger::Effect2DDX9, and Burger::Effect2DOpenGL.

◆ SetPosition() [2/2]

void BURGER_API Burger::Effect2D::SetPosition	(	float	fX,
		float	fY,
		float	fWidth,
		float	fHeight )

pure virtual

Set the location of where to draw the 2D texture.

Parameters

fX	X coordinate from 0.0f to 1.0f
fY	Y coordinate from 0.0f to 1.0f
fWidth	width of the texture from 0.0f to 1.0f
fHeight	height of the texture from 0.0f to 1.0f

Implemented in Burger::Effect2DDX9, and Burger::Effect2DOpenGL.

Member Data Documentation

◆ g_StaticRTTI

const Burger::StaticRTTI Burger::Effect2D::g_StaticRTTI

static

Default constructor for an Effect2DOpenGL.

The global description of the class

This record contains the name of this class and a reference to the parent

◆ m_iEffect2DPosition

int_t Burger::Effect2D::m_iEffect2DPosition

protected

(OpenGL only) Index for the position
