Burger::DecompressSigned8BitAudio Class Reference

Process signed 8 bit audio data. More...

Inheritance diagram for Burger::DecompressSigned8BitAudio:

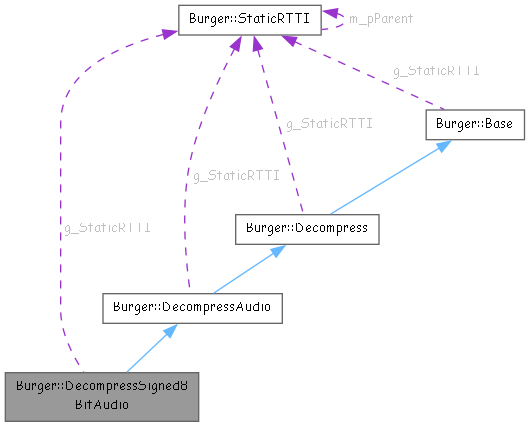

Collaboration diagram for Burger::DecompressSigned8BitAudio:

Public Member Functions
const Burger::StaticRTTI *	get_StaticRTTI (void) const noexcept override
	Get the description to the class.
	DecompressSigned8BitAudio ()
	Default constructor.
eError	Reset (void) override
	Resets the decompresser to defaults.
eError	Process (void *pOutput, uintptr_t uOutputChunkSize, const void *pInput, uintptr_t uInputChunkLength) override
	Decompress audio data using signed bytes.
Public Member Functions inherited from Burger::DecompressAudio
SoundManager::eDataType	GetDataType (void) const
	Returns the uncompressed data type this codec will output.
void	SetMono (void)
	Alert the decompression codec to create a single audio channel.
void	SetStereo (void)
	Alert the decompression codec to create stereo channels.
uint_t	IsStereo (void) const
	Obtain the stereo/mono state of the decompresser.
Public Member Functions inherited from Burger::Decompress
	Decompress (void)
	Default constructor.
uintptr_t	GetTotalInputSize (void) const noexcept
	Get the total processed input data in bytes.
uintptr_t	GetTotalOutputSize (void) const noexcept
	Get the total processed output data in bytes.
uintptr_t	GetProcessedInputSize (void) const noexcept
	Get the total processed output data in bytes from the last process pass.
uintptr_t	GetProcessedOutputSize (void) const noexcept
	Get the total processed output data in bytes from the last process pass.
uint32_t	GetSignature (void) const noexcept
	Return the signature for this decompressor.
Public Member Functions inherited from Burger::Base
const char *	get_class_name (void) const noexcept
	Get the name of the class.
virtual	~Base () noexcept=default
	Destructor.

Static Public Member Functions
static DecompressSigned8BitAudio *	New (void)
	Allocate and initialize a DecompressSigned8BitAudio.

Static Public Attributes
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.
static const uint32_t	Signature = 0x43484152
	'CHAR'
Static Public Attributes inherited from Burger::DecompressAudio
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.
Static Public Attributes inherited from Burger::Decompress
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.
Static Public Attributes inherited from Burger::Base
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Additional Inherited Members
Protected Member Functions inherited from Burger::DecompressAudio
	DecompressAudio (SoundManager::eDataType uDataType)
	Constructor.
Protected Attributes inherited from Burger::DecompressAudio
SoundManager::eDataType	m_eDataType
	Data type the decompresser will create.
uint_t	m_bStereo
	TRUE if data is stereo
Protected Attributes inherited from Burger::Decompress
uintptr_t	m_uTotalInput
	Total number of bytes processed for input.
uintptr_t	m_uTotalOutput
	Total number of bytes processed for output.
uintptr_t	m_uInputLength
	Number of input bytes processed from the last call to Process()
uintptr_t	m_uOutputLength
	Number of output bytes processed from the last call to Process()
uint32_t	m_uSignature
	4 character code to identify this decompresser

Detailed Description

Process signed 8 bit audio data.

---

Convert signed 8 bit audio data to native format

See also

Decompress and DecompressAudio

Constructor & Destructor Documentation

DecompressSigned8BitAudio()

Burger::DecompressSigned8BitAudio::DecompressSigned8BitAudio

(

)

Default constructor.

---

Initializes the defaults

Member Function Documentation

get_StaticRTTI()

const Burger::StaticRTTI * Burger::DecompressSigned8BitAudio::get_StaticRTTI ( void ) const

overridevirtualnoexcept

Get the description to the class.

---

This virtual function will pull the pointer to the StaticRTTI instance that has the name of the class. Due to it being virtual, it will be the name of the most derived class.

Returns

Pointer to a global, read only instance of StaticRTTI for the true class

Reimplemented from Burger::DecompressAudio.

New()

Burger::DecompressSigned8BitAudio *BURGER_API Burger::DecompressSigned8BitAudio::New ( void )

static

Allocate and initialize a DecompressSigned8BitAudio.

---

Returns

A pointer to a default DecompressSigned8BitAudio class or NULL if out of memory

See also

Delete(const T *)

Process()

Burger::eError Burger::DecompressSigned8BitAudio::Process ( void * pOutput, uintptr_t uOutputChunkLength, const void * pInput, uintptr_t uInputChunkLength )

overridevirtual

Decompress audio data using signed bytes.

---

Input data is assumed to be signed bytes. There is no decompression being performed.

Parameters

pOutput	Pointer to the buffer to accept the decompressed data
uOutputChunkLength	Number of bytes in the output buffer
pInput	Pointer to data to decompress
uInputChunkLength	Number of bytes in the data to decompress

Returns

Decompress::eError code with zero if no failure, non-zero is an error code

Implements Burger::Decompress.

Reset()

Burger::eError Burger::DecompressSigned8BitAudio::Reset ( void )

overridevirtual

Resets the decompresser to defaults.

---

Returns

kErrorNone if successful

Implements Burger::Decompress.

Member Data Documentation

g_StaticRTTI

const Burger::StaticRTTI Burger::DecompressSigned8BitAudio::g_StaticRTTI

static

The global description of the class.

---

This record contains the name of this class and a reference to the parent

Signature

const uint32_t Burger::DecompressSigned8BitAudio::Signature = 0x43484152

static

'CHAR'
