Base class for data decompression. More...

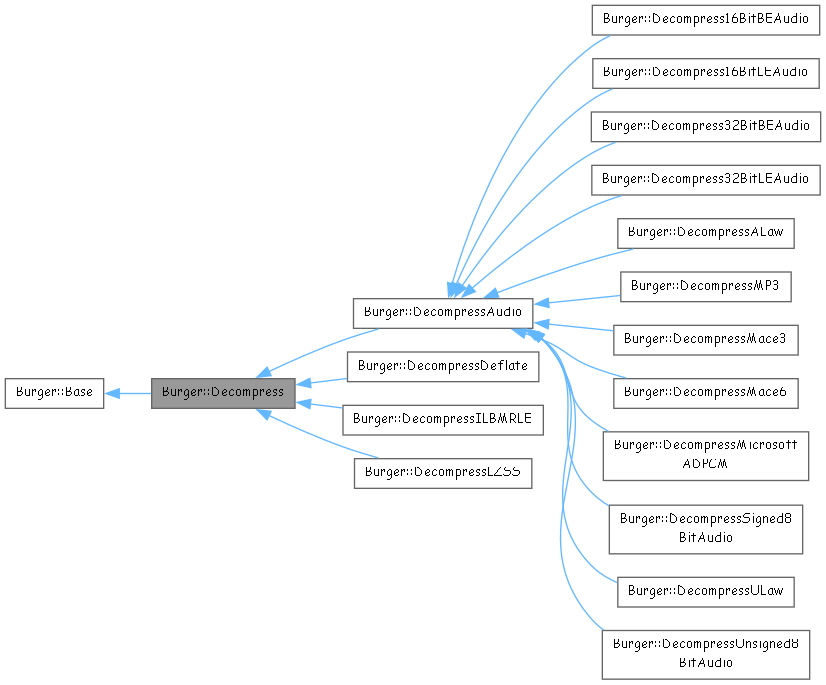

Inheritance diagram for Burger::Decompress:

[legend]

Collaboration diagram for Burger::Decompress:

[legend]

Public Member Functions
const Burger::StaticRTTI *	get_StaticRTTI (void) const noexcept override
	Get the description to the class.

	Decompress (void)
	Default constructor.

virtual eError	Reset (void)=0
	Reset the decompression algorithm.

virtual eError	Process (void pOutput, uintptr_t uOutputChunkSize, const void pInput, uintptr_t uInputChunkLength)=0
	Decompress data into the output buffer.

uintptr_t	GetTotalInputSize (void) const noexcept
	Get the total processed input data in bytes.

uintptr_t	GetTotalOutputSize (void) const noexcept
	Get the total processed output data in bytes.

uintptr_t	GetProcessedInputSize (void) const noexcept
	Get the total processed output data in bytes from the last process pass.

uintptr_t	GetProcessedOutputSize (void) const noexcept
	Get the total processed output data in bytes from the last process pass.

uint32_t	GetSignature (void) const noexcept
	Return the signature for this decompressor.

Public Member Functions inherited from Burger::Base
const char *	get_class_name (void) const noexcept
	Get the name of the class.

virtual	~Base () noexcept=default
	Destructor.

Static Public Attributes
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Static Public Attributes inherited from Burger::Base
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Protected Attributes
uintptr_t	m_uTotalInput
	Total number of bytes processed for input.

uintptr_t	m_uTotalOutput
	Total number of bytes processed for output.

uintptr_t	m_uInputLength
	Number of input bytes processed from the last call to Process()

uintptr_t	m_uOutputLength
	Number of output bytes processed from the last call to Process()

uint32_t	m_uSignature
	4 character code to identify this decompresser

Detailed Description

Base class for data decompression.

For functions that allow decompression, this class will allow any decompression algorithm to be used as long as they derive from this base class.

See also: Burger::Compress

Constructor & Destructor Documentation

◆ Decompress()

Burger::Decompress::Decompress ( void )

Default constructor.

Initializes the defaults

Member Function Documentation

◆ get_StaticRTTI()

const Burger::StaticRTTI * Burger::Decompress::get_StaticRTTI ( void ) const

overridevirtualnoexcept

Get the description to the class.

This virtual function will pull the pointer to the StaticRTTI instance that has the name of the class. Due to it being virtual, it will be the name of the most derived class.

Returns: Pointer to a global, read only instance of StaticRTTI for the true class

Reimplemented from Burger::Base.

Reimplemented in Burger::Decompress16BitBEAudio, Burger::Decompress16BitLEAudio, Burger::Decompress32BitBEAudio, Burger::Decompress32BitLEAudio, Burger::DecompressALaw, Burger::DecompressAudio, Burger::DecompressDeflate, Burger::DecompressILBMRLE, Burger::DecompressLZSS, Burger::DecompressMace3, Burger::DecompressMace6, Burger::DecompressMicrosoftADPCM, Burger::DecompressMP3, Burger::DecompressSigned8BitAudio, Burger::DecompressULaw, and Burger::DecompressUnsigned8BitAudio.

◆ GetProcessedInputSize()

uintptr_t Burger::Decompress::GetProcessedInputSize ( void ) const

inlinenoexcept

Get the total processed output data in bytes from the last process pass.

Returns the number of input processed from the last call to Process().

Returns: Number of input bytes processed from the last call to Process().

See also: GetTotalInputSize(), GetTotalOutputSize() and GetProcessedOutputSize()

◆ GetProcessedOutputSize()

uintptr_t Burger::Decompress::GetProcessedOutputSize ( void ) const

inlinenoexcept

Get the total processed output data in bytes from the last process pass.

Returns the number of output processed from the last call to Process().

Returns: Number of output bytes processed from the last call to Process().

See also: GetTotalInputSize(), GetTotalOutputSize() and GetProcessedInputSize()

◆ GetSignature()

uint32_t Burger::Decompress::GetSignature ( void ) const

inlinenoexcept

Return the signature for this decompressor.

Each decompressor has a unique signature to identify the algorithm used for compression. It's in the form of a 4 character code.

Popular codes are...

Algorithm	Code
LZSS	LZSS
ILBM RLE	RLE
Inflate (ZLib)	ZLIB
LZARI	LZAR
RefPack	REFP
Huffman	HUFF

Returns: A 32 bit number form of the 4 byte character code. It's an endian neutral text string

◆ GetTotalInputSize()

uintptr_t Burger::Decompress::GetTotalInputSize ( void ) const

inlinenoexcept

Get the total processed input data in bytes.

Returns the number of input processed since Init() was called.

Returns: Number of input bytes processed since Init() was called.

See also: GetTotalOutputSize(), GetProcessedInputSize() and GetProcessedOutputSize()

◆ GetTotalOutputSize()

uintptr_t Burger::Decompress::GetTotalOutputSize ( void ) const

inlinenoexcept

Get the total processed output data in bytes.

Returns the number of output processed since Init() was called.

Returns: Number of output bytes processed since Init() was called.

See also: GetTotalInputSize(), GetProcessedInputSize() and GetProcessedOutputSize()

◆ Process()

virtual eError Burger::Decompress::Process	(	void *	pOutput,
		uintptr_t	uOutputChunkSize,
		const void *	pInput,
		uintptr_t	uInputChunkLength )

pure virtual

Decompress data into the output buffer.

Pass data into the decompressor and store the output into the output buffer. Bounds checking is performed to ensure there are no buffer overruns or underruns on output. If the input decompressed into the output buffer without any excess, the code kErrorNone (0) is returned. If there wasn't enough input data to satisfy the output then Decompress::DECOMPRESS_INPUTUNDERRUN is returned and if there was input data unprocessed then kErrorBufferTooSmall is returned.

If kErrorDataCorruption is returned, there was an unrecoverable error.

Note: This is must be implemented by derived class.

Parameters

pOutput	Pointer to the buffer to accept the decompressed data
uOutputChunkSize	Number of bytes in the output buffer
pInput	Pointer to data to compress
uInputChunkLength	Number of bytes in the data to decompress

Returns: Decompress::eError code with zero if no failure, non-zero is an error code

Implemented in Burger::Decompress16BitBEAudio, Burger::Decompress16BitLEAudio, Burger::Decompress32BitBEAudio, Burger::Decompress32BitLEAudio, Burger::DecompressALaw, Burger::DecompressDeflate, Burger::DecompressILBMRLE, Burger::DecompressLZSS, Burger::DecompressMace3, Burger::DecompressMace6, Burger::DecompressMicrosoftADPCM, Burger::DecompressMP3, Burger::DecompressSigned8BitAudio, Burger::DecompressULaw, and Burger::DecompressUnsigned8BitAudio.

◆ Reset()

virtual eError Burger::Decompress::Reset ( void )

pure virtual

Reset the decompression algorithm.

This function will reset the decompression algorithm (Which may or may not require memory allocations) and returns an error code if there was a failure.

Note: This is must be implemented by derived class and it also acts as a "reset" function to recycle this class to perform decompression on new data.

Returns: Decompress::eError enum (Zero is a success code)

Implemented in Burger::Decompress16BitBEAudio, Burger::Decompress16BitLEAudio, Burger::Decompress32BitBEAudio, Burger::Decompress32BitLEAudio, Burger::DecompressALaw, Burger::DecompressDeflate, Burger::DecompressILBMRLE, Burger::DecompressLZSS, Burger::DecompressMace3, Burger::DecompressMace6, Burger::DecompressMicrosoftADPCM, Burger::DecompressMP3, Burger::DecompressSigned8BitAudio, Burger::DecompressULaw, and Burger::DecompressUnsigned8BitAudio.

Member Data Documentation

◆ g_StaticRTTI

const Burger::StaticRTTI Burger::Decompress::g_StaticRTTI

static

The global description of the class.

This record contains the name of this class and a reference to the parent

◆ m_uInputLength

uintptr_t Burger::Decompress::m_uInputLength

protected

Number of input bytes processed from the last call to Process()

◆ m_uOutputLength

uintptr_t Burger::Decompress::m_uOutputLength

protected

Number of output bytes processed from the last call to Process()

◆ m_uSignature

uint32_t Burger::Decompress::m_uSignature

protected

4 character code to identify this decompresser

◆ m_uTotalInput

uintptr_t Burger::Decompress::m_uTotalInput

protected

Total number of bytes processed for input.

◆ m_uTotalOutput

uintptr_t Burger::Decompress::m_uTotalOutput

protected

Total number of bytes processed for output.
