Inheritance diagram for Burger::Keyboard:

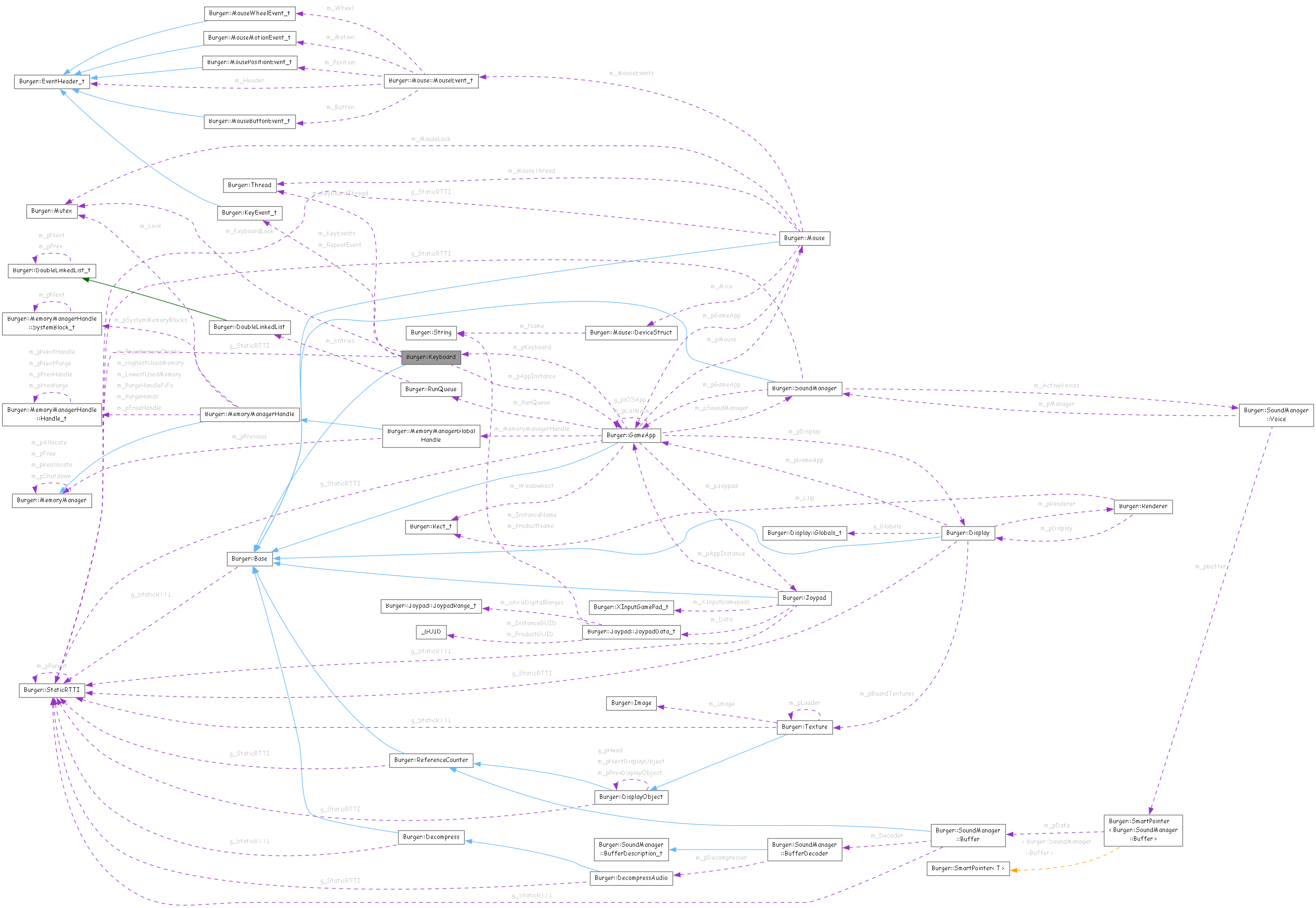

Collaboration diagram for Burger::Keyboard:

[legend]

Public Types
enum	{ KEYCAPDOWN = 0x01 , KEYCAPPRESSED = 0x02 , KEYCAPTOGGLE = 0x4 }

enum	eAsciiCode { ASCII_BACKSPACE = 0x08 , ASCII_TAB = 0x09 , ASCII_ENTER = 0x0D , ASCII_RETURN = 0x0D , ASCII_ESCAPE = 0x1B , ASCII_ESC = 0x1B , ASCII_SPACE = 0x20 , ASCII_F1 = 0x80 , ASCII_F2 = 0x81 , ASCII_F3 = 0x82 , ASCII_F4 = 0x83 , ASCII_F5 = 0x84 , ASCII_F6 = 0x85 , ASCII_F7 = 0x86 , ASCII_F8 = 0x87 , ASCII_F9 = 0x88 , ASCII_F10 = 0x89 , ASCII_F11 = 0x8A , ASCII_F12 = 0x8B , ASCII_F13 = 0x8C , ASCII_F14 = 0x8D , ASCII_F15 = 0x8E , ASCII_PAUSE = 0x8F , ASCII_SCROLLLOCK = 0x090 , ASCII_HOME = 0x91 , ASCII_END = 0x92 , ASCII_LEFTARROW = 0x2190 , ASCII_UPARROW = 0x2191 , ASCII_RIGHTARROW = 0x2192 , ASCII_DOWNARROW = 0x2193 , ASCII_PAGEUP = 0x21DE , ASCII_PAGEDOWN = 0x21DF , ASCII_DELETE = 0x232B , ASCII_INSERT = 0x2380 , ASCII_PRINTSCREEN = 0x2399 }
	Unicode translations for several common keys. More...

enum	eScanCode { SC_INVALID , SC_A , SC_B , SC_C , SC_D , SC_E , SC_F , SC_G , SC_H , SC_I , SC_J , SC_K , SC_L , SC_M , SC_N , SC_O , SC_P , SC_Q , SC_R , SC_S , SC_T , SC_U , SC_V , SC_W , SC_X , SC_Y , SC_Z , SC_FUSS , SC_0 , SC_1 , SC_2 , SC_3 , SC_4 , SC_5 , SC_6 , SC_7 , SC_8 , SC_9 , SC_TILDE , SC_UNDERSCORE , SC_MINUS = SC_UNDERSCORE , SC_PLUS , SC_EQUALS = SC_PLUS , SC_BACKSPACE , SC_RIGHTBRACE , SC_RIGHTBRACKET = SC_RIGHTBRACE , SC_LEFTBRACE , SC_LEFTBRACKET = SC_LEFTBRACE , SC_RETURN , SC_QUOTE , SC_GRAVE = SC_QUOTE , SC_COLON , SC_SEMICOLON = SC_COLON , SC_VERTBAR , SC_BACKSLASH = SC_VERTBAR , SC_COMMA , SC_PERIOD , SC_SLASH , SC_TAB , SC_SPACE , SC_POWERBOOKENTER , SC_ESCAPE , SC_LEFTCONTROL , SC_RIGHTCONTROL , SC_LEFTOPTION , SC_RIGHTOPTION , SC_LEFTALT , SC_LEFTOPENAPPLE = SC_LEFTALT , SC_RIGHTALT , SC_RIGHTOPENAPPLE = SC_RIGHTALT , SC_LEFTSHIFT , SC_RIGHTSHIFT , SC_LEFTMENU , SC_RIGHTMENU , SC_CAPSLOCK , SC_KEYPADPERIOD , SC_KEYPADCOMMA , SC_KEYPADASTERISK , SC_KEYPADPLUS , SC_NUMLOCK , SC_KEYPADSLASH , SC_KEYPADENTER , SC_KEYPADMINUS , SC_KEYPADEQUALS , SC_KEYPAD0 , SC_KEYPAD1 , SC_KEYPAD2 , SC_KEYPAD3 , SC_KEYPAD4 , SC_KEYPAD5 , SC_KEYPAD6 , SC_KEYPAD7 , SC_KEYPAD8 , SC_KEYPAD9 , SC_PRINTSCREEN , SC_SYSRQ = SC_PRINTSCREEN , SC_SCROLLLOCK , SC_PAUSE , SC_INSERT , SC_DELETE , SC_HOME , SC_END , SC_PAGEUP , SC_PAGEDOWN , SC_LEFTARROW , SC_RIGHTARROW , SC_DOWNARROW , SC_UPARROW , SC_F1 , SC_F2 , SC_F3 , SC_F4 , SC_F5 , SC_F6 , SC_F7 , SC_F8 , SC_F9 , SC_F10 , SC_F11 , SC_F12 , SC_F13 , SC_F14 , SC_F15 , SC_OEM_102 , SC_KANA , SC_ABNT_C1 , SC_CONVERT , SC_NOCONVERT , SC_YEN , SC_ABNT_C2 , SC_PREVTRACK , SC_AT , SC_COLONPC98 , SC_UNDERLINE , SC_KANJI , SC_STOP , SC_AX , SC_UNLABELED , SC_NEXTTRACK , SC_MUTE , SC_CALCULATOR , SC_PLAYPAUSE , SC_MEDIASTOP , SC_VOLUMEDOWN , SC_VOLUMEUP , SC_WEBHOME , SC_APPS , SC_POWER , SC_SLEEP , SC_WAKE , SC_WEBSEARCH , SC_WEBFAVORITES , SC_WEBREFRESH , SC_WEBSTOP , SC_WEBFORWARD , SC_WEBBACK , SC_MYCOMPUTER , SC_MAIL , SC_MEDIASELECT , SC_EXTRA , SC_MAXENTRY = 255 }
	Unified scan codes. More...

enum	eKeyFlags { FLAG_ALT = 0x02 , FLAG_CONTROL = 0x04 , FLAG_OPTION = 0x08 , FLAG_SHIFT = 0x10 , FLAG_CAPSLOCK = 0x40 , FLAG_NUMLOCK = 0x80 }
	Keycode modifier flags. More...

Public Member Functions
const Burger::StaticRTTI *	get_StaticRTTI (void) const noexcept override
	Get the description to the class.

	Keyboard (GameApp *pAppInstance) noexcept
	Default constructor.

virtual	~Keyboard ()
	Default destructor.

GameApp *	GetApp (void) const noexcept
	Return the parent application.

uint_t	PeekKeyEvent (KeyEvent_t *pEvent) noexcept
	Check if a keyboard event is pending.

uint_t	GetKeyEvent (KeyEvent_t *pEvent) noexcept
	Retrieve a keyboard event.

void	ClearKey (eScanCode uScanCode) noexcept
	Clear the key event for the specific scan code.

eScanCode	AnyPressed (void) const noexcept
	Check if a key is pressed at this very moment.

uint_t	HasBeenPressed (eScanCode uScanCode) const noexcept
	Check if the requested key is currently or previously held down.

uint_t	HasBeenPressedClear (eScanCode uScanCode) noexcept
	Check if the requested key is currently or previously held down and clear the event.

uint_t	IsPressed (eScanCode uScanCode) const noexcept
	Check if the requested key is currently held down.

uint_t	GetKey (void) noexcept
	Return the Unicode value of a pending key press.

uint_t	GetKeyLowerCase (void) noexcept
	Return a key in lower case.

uint_t	GetKeyUpperCase (void) noexcept
	Return a key in upper case.

void	Flush (void) noexcept
	Flush the keyboard buffer.

uint_t	Wait (void) noexcept
	Wait for a key press.

uint_t	PostKeyDown (eScanCode uScanCode) noexcept
	Post a scan code key down.

uint_t	PostKeyUp (eScanCode uScanCode) noexcept
	Post a scan code key up.

uint_t	PostKey (eScanCode uScanCode) noexcept
	Post a scan code key down and a key up.

uint_t	PostUnicodeDown (uint32_t uUnicode) noexcept
	Post an ASCII/Unicode key down.

uint_t	PostUnicodeUp (uint32_t uUnicode) noexcept
	Post an ASCII/Unicode key up.

uint_t	PostUnicode (uint32_t uUnicode) noexcept
	Post an ASCII/Unicode key down.

uint_t	PostKeyEvent (const KeyEvent_t *pEvent) noexcept
	Post the keyboard event.

uint_t	EncodeScanCode (KeyEvent_t *pEvent, eScanCode uScanCode) const noexcept
	Convert a scan code to a KeyEvent_t.

uint_t	EncodeUnicode (KeyEvent_t *pEvent, uint32_t uUnicode) const noexcept
	Convert a Unicode character to a KeyEvent_t.

uint_t	GetCurrentFlags (void) const noexcept
	Return the flags for a KeyEvent_t based on the currently active modifiers.

uint_t	DisableWindowsKey (void) noexcept
	Install keyboard intercept function disabling Windows Key.

void	EnableWindowsKey (void) noexcept
	Remove keyboard intercept function disabling Windows Key.

HHOOK__ *	GetWindowsPreviousKeyboardHook (void) const noexcept
	Return the Windows default Keyboard Hook function.

uint_t	IsDirectInputActive (void) const noexcept
	Is DirectInput active?

uint_t	PostWindowsKeyEvent (eEvent uEvent, uint32_t uScanCode) noexcept
	Post a windows scan code key event.

uint_t	EncodeWindowsScanCode (KeyEvent_t *pEvent, uint_t uWindowsCode) const noexcept
	Convert a windows a scan code to a KeyEvent_t (Windows only)

void	AcquireDirectInput (void) noexcept
	Acquire DirectInput (Windows only)

void	UnacquireDirectInput (void) noexcept
	Release DirectInput (Windows only)

void	ReadSystemKeyboardDelays (void) noexcept
	Read System keyboard delay constants (Windows only)

void	DisableAccessibilityShortcutKeys (void) const noexcept
	Disable the accessibility shortcut keys (Windows only)

void	RestoreAccessibilityShortcutKeys (void) noexcept
	Restore the accessibility shortcut keys (Windows only)

void	ProcessEvent (NSEvent *pEvent) noexcept
	Process a MacOSX keystroke.

Public Member Functions inherited from Burger::Base
const char *	get_class_name (void) const noexcept
	Get the name of the class.

virtual	~Base () noexcept=default
	Destructor.

Static Public Member Functions
static eScanCode	StringToScanCode (const char *pString) noexcept
	Convert a string to a scan code.

static void	ScanCodeToString (char *pString, uintptr_t uStringSize, eScanCode uScanCode) noexcept
	Convert a scan code into a string.

Static Public Attributes
static const Burger::StaticRTTI	g_StaticRTTI

static const uint_t	kBufferSize = 128
	Number of keystrokes in keyboard cache.

Static Public Attributes inherited from Burger::Base
static const Burger::StaticRTTI	g_StaticRTTI
	The global description of the class.

Protected Member Functions
void	Lock (void) noexcept

void	Unlock (void) noexcept

Static Protected Member Functions
static uintptr_t	WindowsKeyboardThread (void *pData)
	Windows thread for monitoring keyboard events (Windows only)

Protected Attributes
GameApp *	m_pAppInstance
	Application instances.

IDirectInputDevice8W *	m_pKeyboardDevice
	DirectInput Device reference (Windows only)

void *	m_pKeyboardEvent
	Event signal for DirectInput (Windows only)

void *	m_pKeyboardTimerEvent
	Keyboard repeat timer event (Windows only)

HHOOK__ *	m_pPreviousKeyboardHook
	Previous keyboard low level hook.

Thread	m_KeyboardThread
	Asynchronous thread monitoring DirectInput (Windows only)

uint_t	m_bDirectInput8Acquired
	TRUE if DirectInput8 is active (Windows only)

uint_t	m_bRepeatActive
	TRUE if auto repeat time is active (Windows only)

volatile uint32_t	m_bQuit
	TRUE when the thread is shutting down (Windows only)

Burger_tagSTICKYKEYS	m_DefaultStickyKeys
	Previous settings for Sticky Keys (Windows only)

Burger_tagTOGGLEKEYS	m_DefaultToggleKeys
	Previous settings for Toggle Keys (Windows only)

Burger_tagFILTERKEYS	m_DefaultFilterKeys
	Previous settings for Filter Keys (Windows only)

Mutex	m_KeyboardLock
	Lock for multi-threading (MacOSX and Windows only)

uint8_t	m_KeyArray [SC_MAXENTRY+1]
	Array with the current state of the keyboard.

uint_t	m_uArrayStart
	Read index for m_KeyEvents.

uint_t	m_uArrayEnd
	Write index for m_KeyEvents.

uint_t	m_uInitialDelay
	Initial delay in ms for autorepeat.

uint_t	m_uRepeatDelay
	Delay between repeating keystrokes.

KeyEvent_t	m_KeyEvents [kBufferSize]
	Circular buffer holding keyboard events.

KeyEvent_t	m_RepeatEvent
	Event to post on a repeat.

Private Member Functions
	Keyboard (const Keyboard &)=delete

Keyboard &	operator= (const Keyboard &)=delete

	Keyboard (Keyboard &&)=delete

Keyboard &	operator= (Keyboard &&)=delete

Detailed Description

Keyboard input manager.

This class manages keyboard input down to the individual key cap. It's main use is to use the keyboard as a gaming input device. Emphasis is on speed, low latency and accuracy.

When this class is instantiated, a keyboard monitor is activated which will check for all key strokes. There are a maximum of 256 keyboard scan codes that can be monitored. Each byte will contain the current status of the key by scan code. The lowest bit (mask with 0x01) will determine the key down status at the current moment in time. Bit #1 (mask with 0x02) is set when the key is pressed but never cleared unless you call a function that clears the flag or Keyboard::Flush() with flushes all events.

This array is checked by several routines that use the keyboard as a game input device.

The array is volatile since some keyboard monitors run as a separate thread.

See also: Burger::Joypad and Burger::Mouse

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
KEYCAPDOWN	If TRUE in m_KeyArray, this key is currently held down.
KEYCAPPRESSED	If TRUE in m_KeyArray, this key was pressed, but wasn't acknowledged by the application.
KEYCAPTOGGLE	If TRUE in m_KeyArray, this key is toggled "on".

◆ eAsciiCode

enum Burger::Keyboard::eAsciiCode

Unicode translations for several common keys.

When these keys are pressed, they return these specific Unicode compatible "ASCII" codes.

Enumerator
ASCII_BACKSPACE	Backspace key.
ASCII_TAB	Tab key.
ASCII_ENTER	Return/enter key.
ASCII_RETURN	Return/enter key.
ASCII_ESCAPE	Escape key.
ASCII_ESC	Escape key.
ASCII_SPACE	Space bar.
ASCII_F1	F1 key.
ASCII_F2	F2 key.
ASCII_F3	F3 key.
ASCII_F4	F4 key.
ASCII_F5	F5 key.
ASCII_F6	F6 key.
ASCII_F7	F7 key.
ASCII_F8	F8 key.
ASCII_F9	F9 key.
ASCII_F10	F10 key.
ASCII_F11	F11 key.
ASCII_F12	F12 key.
ASCII_F13	F12 key.
ASCII_F14	F12 key.
ASCII_F15	F12 key.
ASCII_PAUSE	Pause key.
ASCII_SCROLLLOCK	Scroll lock key.
ASCII_HOME	Home key.
ASCII_END	End key.
ASCII_LEFTARROW	Left arrow key.
ASCII_UPARROW	Up arrow key.
ASCII_RIGHTARROW	Right arrow key.
ASCII_DOWNARROW	Down arrow key.
ASCII_PAGEUP	Page up key.
ASCII_PAGEDOWN	Page down key.
ASCII_DELETE	Delete key.
ASCII_INSERT	Insert key.
ASCII_PRINTSCREEN	Printscreen key.

◆ eKeyFlags

enum Burger::Keyboard::eKeyFlags

Keycode modifier flags.

When a keyboard event is generated, a set of flags can be attached to denote any type of modification that was applied to the keystroke at the moment of press.

See also: KeyEvent_t

Enumerator
FLAG_ALT	Alt/Open Apple key is held down at the same time.
FLAG_CONTROL	Control key is held down at the same time.
FLAG_OPTION	Option key is held down at the same time.
FLAG_SHIFT	Shift key is held down at the same time.
FLAG_CAPSLOCK	Caps lock is active,.
FLAG_NUMLOCK	Num lock is active.

◆ eScanCode

enum Burger::Keyboard::eScanCode

Unified scan codes.

All platforms will have their keyboard scan codes mapped to these enumerations. It allows an application to save a keyboard mapping file on one platform and read it in on another and have the keys map properly.

Enumerator
SC_INVALID	Zero means no key.
SC_A	A Key.
SC_B	B Key.
SC_C	C Key.
SC_D	D Key.
SC_E	E Key.
SC_F	F Key.
SC_G	G Key.
SC_H	H Key.
SC_I	I Key.
SC_J	J Key.
SC_K	K Key.
SC_L	L Key.
SC_M	M Key.
SC_N	N Key.
SC_O	O Key.
SC_P	P Key.
SC_Q	Q Key.
SC_R	R Key.
SC_S	S Key.
SC_T	T Key.
SC_U	U Key.
SC_V	V Key.
SC_W	W Key.
SC_X	X Key.
SC_Y	Y Key.
SC_Z	Z Key.
SC_FUSS	German ss.
SC_0	)/0 Key
SC_1	!/1 Key
SC_2	@/2 Key
SC_3	#/3 Key
SC_4	$/4 Key
SC_5	%/5 Key
SC_6	^/6 Key
SC_7	&/7 Key
SC_8	*‍/8 Key
SC_9	(/9 Key
SC_TILDE	~/` Key
SC_UNDERSCORE	_/- Key
SC_MINUS	_/- Key
SC_PLUS	+/= Key
SC_EQUALS	+/= Key
SC_BACKSPACE	Backspace key.
SC_RIGHTBRACE	{/[ key
SC_RIGHTBRACKET	{/[ key
SC_LEFTBRACE	}/] key
SC_LEFTBRACKET	}/] key
SC_RETURN	Return key.
SC_QUOTE	"/' key
SC_GRAVE	"/' key
SC_COLON	:/; key
SC_SEMICOLON	:/; key
SC_VERTBAR	\|/\ key
SC_BACKSLASH	\|/\ key
SC_COMMA	</, key
SC_PERIOD	>/. key
SC_SLASH	?// key
SC_TAB	Tab key.
SC_SPACE	Spacebar.
SC_POWERBOOKENTER	Mac powerbook enter key.
SC_ESCAPE	Escape key.
SC_LEFTCONTROL	Left control key.
SC_RIGHTCONTROL	Right control key.
SC_LEFTOPTION	Left option key.
SC_RIGHTOPTION	Right option key.
SC_LEFTALT	Left Alt/Apple key.
SC_LEFTOPENAPPLE	Left Alt/Apple key.
SC_RIGHTALT	Right Alt/Apple key.
SC_RIGHTOPENAPPLE	Right Alt/Apple key.
SC_LEFTSHIFT	Left shift key.
SC_RIGHTSHIFT	Right shift key.
SC_LEFTMENU	Left menu key.
SC_RIGHTMENU	Right menu key.
SC_CAPSLOCK	Caps lock key.
SC_KEYPADPERIOD	Keypad period.
SC_KEYPADCOMMA	Keypad comma (NEC PC98)
SC_KEYPADASTERISK	Keypad asterisk.
SC_KEYPADPLUS	Keypad +.
SC_NUMLOCK	Numlock.
SC_KEYPADSLASH	Keypad divide.
SC_KEYPADENTER	Keypad enter.
SC_KEYPADMINUS	Keypad -.
SC_KEYPADEQUALS	Keypad =.
SC_KEYPAD0	Keypad 0.
SC_KEYPAD1	Keypad 1.
SC_KEYPAD2	Keypad 2.
SC_KEYPAD3	Keypad 3.
SC_KEYPAD4	Keypad 4.
SC_KEYPAD5	Keypad 5.
SC_KEYPAD6	Keypad 6.
SC_KEYPAD7	Keypad 7.
SC_KEYPAD8	Keypad 8.
SC_KEYPAD9	Keypad 9.
SC_PRINTSCREEN	Print screen.
SC_SYSRQ	System Request.
SC_SCROLLLOCK	Scroll lock.
SC_PAUSE	Pause key.
SC_INSERT	Insert key.
SC_DELETE	Delete key.
SC_HOME	Home key.
SC_END	End key.
SC_PAGEUP	Pageup key.
SC_PAGEDOWN	Pagedown key.
SC_LEFTARROW	Left arrow key.
SC_RIGHTARROW	Right arrow key.
SC_DOWNARROW	Down arrow key.
SC_UPARROW	Up arrow key.
SC_F1	Function key 1.
SC_F2	Function key 2.
SC_F3	Function key 3.
SC_F4	Function key 4.
SC_F5	Function key 5.
SC_F6	Function key 6.
SC_F7	Function key 7.
SC_F8	Function key 8.
SC_F9	Function key 9.
SC_F10	Function key 10.
SC_F11	Function key 11.
SC_F12	Function key 12.
SC_F13	Function key 13.
SC_F14	Function key 14.
SC_F15	Function key 15.
SC_OEM_102	<> or \| on RT 102-key keyboard (Non-U.S.)
SC_KANA	(Japanese keyboard)
SC_ABNT_C1	/? on Brazilian keyboard
SC_CONVERT	(Japanese keyboard)
SC_NOCONVERT	(Japanese keyboard)
SC_YEN	(Japanese keyboard)
SC_ABNT_C2	Numpad . on Brazilian keyboard.
SC_PREVTRACK	Previous Track (CIRCUMFLEX on Japanese keyboard)
SC_AT	(NEC PC98)
SC_COLONPC98	(NEC PC98)
SC_UNDERLINE	(NEC PC98)
SC_KANJI	(Japanese keyboard)
SC_STOP	(NEC PC98)
SC_AX	(Japan AX)
SC_UNLABELED	(J3100)
SC_NEXTTRACK	Next Track.
SC_MUTE	Mute.
SC_CALCULATOR	Calculator.
SC_PLAYPAUSE	Play / Pause.
SC_MEDIASTOP	Media Stop.
SC_VOLUMEDOWN	Volume -.
SC_VOLUMEUP	Volume +.
SC_WEBHOME	Web home.
SC_APPS	AppMenu key.
SC_POWER	System Power.
SC_SLEEP	System Sleep.
SC_WAKE	System Wake.
SC_WEBSEARCH	Web Search.
SC_WEBFAVORITES	Web Favorites.
SC_WEBREFRESH	Web Refresh.
SC_WEBSTOP	Web Stop.
SC_WEBFORWARD	Web Forward.
SC_WEBBACK	Web Back.
SC_MYCOMPUTER	My Computer.
SC_MAIL	Mail.
SC_MEDIASELECT	Media Select.
SC_EXTRA	Extra key codes.
SC_MAXENTRY	Highest scan code valid value.

Constructor & Destructor Documentation

◆ Keyboard() [1/3]

Burger::Keyboard::Keyboard ( const Keyboard & )

privatedelete

◆ Keyboard() [2/3]

Burger::Keyboard::Keyboard ( Keyboard && )

privatedelete

◆ Keyboard() [3/3]

Burger::Keyboard::Keyboard ( GameApp * pAppInstance )

noexcept

Default constructor.

Installs the heartbeat thread to periodically refresh the m_KeyArray and generate the lists of upcoming key events

See also: ~Keyboard()

◆ ~Keyboard()

Burger::Keyboard::~Keyboard ( )

virtual

Default destructor.

Shuts down the heartbeat thread and releases all allocated system resources.

Member Function Documentation

◆ AcquireDirectInput()

void BURGER_API Burger::Keyboard::AcquireDirectInput ( void )

noexcept

Acquire DirectInput (Windows only)

Call Acquire() on the DirectInput mouse device.

Note: This is only available on Windows

See also: UnacquireDirectInput(void)

◆ AnyPressed()

Burger::Keyboard::eScanCode BURGER_API Burger::Keyboard::AnyPressed ( void ) const

noexcept

Check if a key is pressed at this very moment.

Scan the keyboard status array and return the scan code of the first key found that's held down.

Returns: SC_INVALID if no key was pressed or the scan code of the first key found

◆ ClearKey()

void BURGER_API Burger::Keyboard::ClearKey ( eScanCode uScanCode )

noexcept

Clear the key event for the specific scan code.

If the code is invalid, do nothing. Otherwise, clear the keyboard flags in the m_KeyArray

Parameters

uScanCode Valid keyboard scan code to check

See also: AnyPressed() or IsPressed(eScanCode)

◆ DisableAccessibilityShortcutKeys()

void BURGER_API Burger::Keyboard::DisableAccessibilityShortcutKeys ( void ) const

noexcept

Disable the accessibility shortcut keys (Windows only)

There are some keyboard modes that are intended for people with typing problems. If any of these features were not enabled when the application started, disable the ability to turn them on by using keyboard shortcuts. It helps prevent a player using the keyboard from accidentally enabling this feature while mashing buttons like crazy.

Note: This is only available on Windows

See also: RestoreAccessibilityShortcutKeys(void)

◆ DisableWindowsKey()

uint_t BURGER_API Burger::Keyboard::DisableWindowsKey ( void )

noexcept

Install keyboard intercept function disabling Windows Key.

Installs a keyboard hook that disables the windows key.

Note: If kTraceFlagActiveDebugging is set, this feature is disabled since it causes Visual Studio 2010's debugger to wait 5 seconds per keystroke; This is only available on Windows

Returns: Zero if no error, Windows error code on failure

See also: EnableWindowsKey(void)

◆ EnableWindowsKey()

void BURGER_API Burger::Keyboard::EnableWindowsKey ( void )

noexcept

Remove keyboard intercept function disabling Windows Key.

If DisableWindowsKey(void) was called, it installed a keyboard hook that disabled the windows key. This function removes that intercept.

Note: This is only available on Windows

See also: DisableWindowsKey(void)

◆ EncodeScanCode()

uint_t BURGER_API Burger::Keyboard::EncodeScanCode	(	KeyEvent_t *	pEvent,
		eScanCode	uScanCode ) const

noexcept

Convert a scan code to a KeyEvent_t.

Given a scan code, check the state of the keyboard and determine the Unicode/ASCII code to be generated for this keypress.

Returns: Zero if successful, non-zero if a scan code is unknown.

◆ EncodeUnicode()

uint_t BURGER_API Burger::Keyboard::EncodeUnicode	(	KeyEvent_t *	pEvent,
		uint32_t	uUnicode ) const

noexcept

Convert a Unicode character to a KeyEvent_t.

Given a Unicode character, look up the scan code, if available, and fill in a KeyEvent_t to be generated for this keypress.

Returns: Zero if successful, non-zero if the Unicode value is unknown.

◆ EncodeWindowsScanCode()

uint_t BURGER_API Burger::Keyboard::EncodeWindowsScanCode	(	KeyEvent_t *	pEvent,
		uint_t	uWindowsCode ) const

noexcept

Convert a windows a scan code to a KeyEvent_t (Windows only)

Convert a windows scan code to a Keyboard event

Note: This is only available on Windows

Returns: Zero if successful, non-zero if a scan code is unknown.

◆ Flush()

void BURGER_API Burger::Keyboard::Flush ( void )

noexcept

Flush the keyboard buffer.

Release all pending keyboard events and erase the keyboard array.

◆ get_StaticRTTI()

const Burger::StaticRTTI * Burger::Keyboard::get_StaticRTTI ( void ) const

overridevirtualnoexcept

Get the description to the class.

This virtual function will pull the pointer to the StaticRTTI instance that has the name of the class. Due to it being virtual, it will be the name of the most derived class.

Returns: Pointer to a global, read only instance of StaticRTTI for the true class

Reimplemented from Burger::Base.

◆ GetApp()

GameApp * Burger::Keyboard::GetApp ( void ) const

inlinenoexcept

Return the parent application.

Get the pointer to the application that is connected to the Keyboard manager

Returns: Pointer to the connected GameApp

◆ GetCurrentFlags()

uint_t BURGER_API Burger::Keyboard::GetCurrentFlags ( void ) const

noexcept

Return the flags for a KeyEvent_t based on the currently active modifiers.

Check the state of previously pressed keys and return the modifier flags for converting a scan code into an ASCII/Unicode value.

Returns: FLAG_??? merged together for setting KeyEvent_t::m_uFlags

◆ GetKey()

uint_t BURGER_API Burger::Keyboard::GetKey ( void )

noexcept

Return the Unicode value of a pending key press.

Check if a key is pending and return zero if not, else return the Unicode value. All key up events up until the key down are consumed.

Returns: Zero if no key is pending, Unicode key if there was a pending key

◆ GetKeyEvent()

uint_t BURGER_API Burger::Keyboard::GetKeyEvent ( KeyEvent_t * pEvent )

noexcept

Retrieve a keyboard event.

If a keyboard event is in the queue, return the event and remove it from the list.

Parameters

pEvent Pointer to a KeyEvent_t structure to receive the event.

Returns: Zero if no key was pending, non-zero if a keyboard event was retrieved.

See also: PeekKeyEvent(KeyEvent_t *)

◆ GetKeyLowerCase()

uint_t BURGER_API Burger::Keyboard::GetKeyLowerCase ( void )

noexcept

Return a key in lower case.

Check if a key is pending and return zero if not, else the Unicode code in lower case

Returns: Zero if no key is pending, lower case key if there was a pending key

◆ GetKeyUpperCase()

uint_t BURGER_API Burger::Keyboard::GetKeyUpperCase ( void )

noexcept

Return a key in upper case.

Check if a key is pending and return zero if not, else the Unicode code in upper case

Returns: Zero if no key is pending, upper case key if there was a pending key

◆ GetWindowsPreviousKeyboardHook()

HHOOK__ * Burger::Keyboard::GetWindowsPreviousKeyboardHook ( void ) const

inlinenoexcept

Return the Windows default Keyboard Hook function.

If a keyboard hook was installed via a call to DisableWindowsKey(), this pointer is valid and points to the function in Windows to be passed to the function CallNextHookEx()

Note: This is only available on Windows

Returns: Pointer to the connected previous Windows Keyboard Hook

◆ HasBeenPressed()

uint_t BURGER_API Burger::Keyboard::HasBeenPressed ( eScanCode uScanCode ) const

noexcept

Check if the requested key is currently or previously held down.

If a key has been pressed, return TRUE. If the key has not been pressed or the scan code is invalid, return FALSE. This function will not clear the event. Use HasBeenPressedClear() to clear the event

Parameters

uScanCode Valid Scan code

Returns: TRUE if the key was pressed, FALSE if not

See also: HasBeenPressedClear(eScanCode)

◆ HasBeenPressedClear()

uint_t BURGER_API Burger::Keyboard::HasBeenPressedClear ( eScanCode uScanCode )

noexcept

Check if the requested key is currently or previously held down and clear the event.

If a key is pressed, clear the event and return TRUE, otherwise or if the scan code is invalid, return FALSE

Parameters

uScanCode Valid Scan code

Returns: TRUE if the key was pressed, FALSE if not

See also: HasBeenPressed(eScanCode)

◆ IsDirectInputActive()

uint_t Burger::Keyboard::IsDirectInputActive ( void ) const

inlinenoexcept

Is DirectInput active?

Returns TRUE is keyboard input is managed by DirectInput. This mode is only active if the game has focus and is full screen.

Note: This is only available on Windows

Returns: TRUE if DirectInput is active, FALSE if not

◆ IsPressed()

uint_t BURGER_API Burger::Keyboard::IsPressed ( eScanCode uScanCode ) const

noexcept

Check if the requested key is currently held down.

If the key is currently held down, return TRUE, otherwise or if the scan code is invalid, return FALSE

Parameters

uScanCode Valid Scan code

Returns: TRUE if the key was pressed, FALSE if not

◆ Lock()

void Burger::Keyboard::Lock ( void )

inlineprotectednoexcept

◆ operator=() [1/2]

Keyboard & Burger::Keyboard::operator= ( const Keyboard & )

privatedelete

◆ operator=() [2/2]

Keyboard & Burger::Keyboard::operator= ( Keyboard && )

privatedelete

◆ PeekKeyEvent()

uint_t BURGER_API Burger::Keyboard::PeekKeyEvent ( KeyEvent_t * pEvent )

noexcept

Check if a keyboard event is pending.

See if a key is pending from the keyboard, if so, return the event without removing it from the queue.

Parameters

pEvent Pointer to a KeyEvent_t structure to receive the event.

Returns: Zero if no key was pending, non-zero if a keyboard event was retrieved.

See also: GetKeyEvent(KeyEvent_t *)

◆ PostKey()

uint_t BURGER_API Burger::Keyboard::PostKey ( eScanCode uScanCode )

noexcept

Post a scan code key down and a key up.

Given a keyboard scan code, post a key down event followed by a key up event

Parameters

uScanCode Keyboard scan code

Returns: Zero if posted successfully, non-zero if not.

See also: PostKeyUp(eScanCode) or PostKeyDown(eScanCode)

◆ PostKeyDown()

uint_t BURGER_API Burger::Keyboard::PostKeyDown ( eScanCode uScanCode )

noexcept

Post a scan code key down.

Given a keyboard scan code, post a key down event

Parameters

uScanCode Keyboard scan code

Returns: Zero if posted successfully, non-zero if not.

See also: PostKeyUp(eScanCode)

◆ PostKeyEvent()

uint_t BURGER_API Burger::Keyboard::PostKeyEvent ( const KeyEvent_t * pEvent )

noexcept

Post the keyboard event.

Given a valid keyboard event structure, post the event

Parameters

pEvent Pointer to a valid keyboard event

Returns: Zero if successful, error code if not

◆ PostKeyUp()

uint_t BURGER_API Burger::Keyboard::PostKeyUp ( eScanCode uScanCode )

noexcept

Post a scan code key up.

Given a keyboard scan code, post a key up event

Parameters

uScanCode Keyboard scan code

Returns: Zero if posted successfully, non-zero if not.

See also: PostKeyDown(eScanCode)

◆ PostUnicode()

uint_t BURGER_API Burger::Keyboard::PostUnicode ( uint32_t uUnicode )

noexcept

Post an ASCII/Unicode key down.

Given an ASCII/Unicode character, post a key down event

Parameters

uUnicode Unicode32 character

Returns: Zero if posted successfully, non-zero if not.

See also: PostUnicodeUp(uint32_t) or PostUnicodeDown(uint32_t)

◆ PostUnicodeDown()

uint_t BURGER_API Burger::Keyboard::PostUnicodeDown ( uint32_t uUnicode )

noexcept

Post an ASCII/Unicode key down.

Given an ASCII/Unicode character, post a key down event

Parameters

uUnicode Unicode32 character

Returns: Zero if posted successfully, non-zero if not.

See also: PostUnicodeUp(uint32_t)

◆ PostUnicodeUp()

uint_t BURGER_API Burger::Keyboard::PostUnicodeUp ( uint32_t uUnicode )

noexcept

Post an ASCII/Unicode key up.

Given an ASCII/Unicode character, post a key up event

Parameters

uUnicode Unicode32 character

Returns: Zero if posted successfully, non-zero if not.

See also: PostUnicodeDown(uint32_t)

◆ PostWindowsKeyEvent()

uint_t BURGER_API Burger::Keyboard::PostWindowsKeyEvent	(	eEvent	uEvent,
		uint32_t	uScanCode )

noexcept

Post a windows scan code key event.

Given a Windows keyboard scan code, convert it to a Burgerlib key press and post the event

Note: This is only available on Windows

Parameters

uEvent	Type of key event to post
uScanCode	Windows keyboard scan code

Returns: Zero if posted successfully, non-zero if not.

See also: PostKeyEvent(const KeyEvent_t *)

◆ ProcessEvent()

void BURGER_API Burger::Keyboard::ProcessEvent ( NSEvent * pEvent )

noexcept

Process a MacOSX keystroke.

When an NSEvent is created that is of a type of NSKeyDown, NSKeyUp or NSFlagsChanged, this function will process the event into a Burgerlib compatible keystroke

Parameters

pEvent Pointer to a NSEvent with a keyboard event.

◆ ReadSystemKeyboardDelays()

void BURGER_API Burger::Keyboard::ReadSystemKeyboardDelays ( void )

noexcept

Read System keyboard delay constants (Windows only)

On startup and when a WM_SETTINGCHANGE event is triggered, read the settings for the keyboard auto-repeat from Windows and record it so auto-repeat is as the user requested it.

Note: This is only available on Windows

◆ RestoreAccessibilityShortcutKeys()

void BURGER_API Burger::Keyboard::RestoreAccessibilityShortcutKeys ( void )

noexcept

Restore the accessibility shortcut keys (Windows only)

Restore the accessibility shortcut keys to the settings that were captured upon instantiation of the Keyboard class

Note: This is only available on Windows

See also: DisableAccessibilityShortcutKeys(void)

◆ ScanCodeToString()

void BURGER_API Burger::Keyboard::ScanCodeToString	(	char *	pString,
		uintptr_t	uStringSize,
		eScanCode	uScanCode )

staticnoexcept

Convert a scan code into a string.

Given a Burgerlib keyboard scan code, return a string that best describes the scan code. If StringSize is 0, nothing will be done since the output buffer is invalid.

Parameters

pString	Pointer to a "C" string buffer to store the result
uStringSize	sizeof() the buffer to prevent overruns
uScanCode	Valid Burgerlib scan code

See also: StringToScanCode()

◆ StringToScanCode()

Burger::Keyboard::eScanCode BURGER_API Burger::Keyboard::StringToScanCode ( const char * pString )

staticnoexcept

Convert a string to a scan code.

Given a pointer to a string describing a keyboard scan code. Look up the scan code and return the value. I return a -1 if there is no match.

Parameters

pString Pointer to a "C" string

Returns: Burgerlib scan code or a -1 if no match is found.

See also: ScanCodeToString()

◆ UnacquireDirectInput()

void BURGER_API Burger::Keyboard::UnacquireDirectInput ( void )

noexcept

Release DirectInput (Windows only)

Call Unacquire() on the DirectInput mouse device.

Note: This is only available on Windows

See also: AcquireDirectInput(void)

◆ Unlock()

void Burger::Keyboard::Unlock ( void )

inlineprotectednoexcept

◆ Wait()

uint_t BURGER_API Burger::Keyboard::Wait ( void )

noexcept

Wait for a key press.

Wait for a keypress, but call GetKey() to allow screen savers to kick in.

Returns: Unicode code of pressed key

◆ WindowsKeyboardThread()

uintptr_t BURGER_API Burger::Keyboard::WindowsKeyboardThread ( void * pData )

staticprotected

Windows thread for monitoring keyboard events (Windows only)

Burgerlib reads keyboard events using DirectInput and asynchronous thread events.

This function runs as a separate thread and processes all DirectInput events.

Note: This is used by the keyboard manager, it's not intended to be used by applications.

Parameters

pData Pointer to the Keyboard class instance

Returns: Zero when asked to shut down

Member Data Documentation

◆ g_StaticRTTI

const Burger::StaticRTTI Burger::Keyboard::g_StaticRTTI

static

◆ kBufferSize

const uint_t Burger::Keyboard::kBufferSize = 128

static

Number of keystrokes in keyboard cache.

◆ m_bDirectInput8Acquired

uint_t Burger::Keyboard::m_bDirectInput8Acquired

protected

TRUE if DirectInput8 is active (Windows only)

◆ m_bQuit

volatile uint32_t Burger::Keyboard::m_bQuit

protected

TRUE when the thread is shutting down (Windows only)

◆ m_bRepeatActive

uint_t Burger::Keyboard::m_bRepeatActive

protected

TRUE if auto repeat time is active (Windows only)

◆ m_DefaultFilterKeys

Burger_tagFILTERKEYS Burger::Keyboard::m_DefaultFilterKeys

protected

Previous settings for Filter Keys (Windows only)

◆ m_DefaultStickyKeys

Burger_tagSTICKYKEYS Burger::Keyboard::m_DefaultStickyKeys

protected

Previous settings for Sticky Keys (Windows only)

◆ m_DefaultToggleKeys

Burger_tagTOGGLEKEYS Burger::Keyboard::m_DefaultToggleKeys

protected

Previous settings for Toggle Keys (Windows only)

◆ m_KeyArray

uint8_t Burger::Keyboard::m_KeyArray[SC_MAXENTRY+1]

protected

Array with the current state of the keyboard.

◆ m_KeyboardLock

Mutex Burger::Keyboard::m_KeyboardLock

protected

Lock for multi-threading (MacOSX and Windows only)

◆ m_KeyboardThread

Thread Burger::Keyboard::m_KeyboardThread

protected

Asynchronous thread monitoring DirectInput (Windows only)

◆ m_KeyEvents

KeyEvent_t Burger::Keyboard::m_KeyEvents[kBufferSize]

protected

Circular buffer holding keyboard events.

◆ m_pAppInstance

GameApp* Burger::Keyboard::m_pAppInstance

protected

Application instances.

◆ m_pKeyboardDevice

IDirectInputDevice8W* Burger::Keyboard::m_pKeyboardDevice

protected

DirectInput Device reference (Windows only)

◆ m_pKeyboardEvent

void* Burger::Keyboard::m_pKeyboardEvent

protected

Event signal for DirectInput (Windows only)

◆ m_pKeyboardTimerEvent

void* Burger::Keyboard::m_pKeyboardTimerEvent

protected

Keyboard repeat timer event (Windows only)

◆ m_pPreviousKeyboardHook

HHOOK__* Burger::Keyboard::m_pPreviousKeyboardHook

protected

Previous keyboard low level hook.

◆ m_RepeatEvent

KeyEvent_t Burger::Keyboard::m_RepeatEvent

protected

Event to post on a repeat.

◆ m_uArrayEnd

uint_t Burger::Keyboard::m_uArrayEnd

protected

Write index for m_KeyEvents.

◆ m_uArrayStart

uint_t Burger::Keyboard::m_uArrayStart

protected

Read index for m_KeyEvents.

◆ m_uInitialDelay

uint_t Burger::Keyboard::m_uInitialDelay

protected

Initial delay in ms for autorepeat.

◆ m_uRepeatDelay

uint_t Burger::Keyboard::m_uRepeatDelay

protected

Delay between repeating keystrokes.

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ eAsciiCode

◆ eKeyFlags

◆ eScanCode

Constructor & Destructor Documentation

◆ Keyboard() [1/3]

◆ Keyboard() [2/3]

◆ Keyboard() [3/3]

◆ ~Keyboard()

Member Function Documentation

◆ AcquireDirectInput()

◆ AnyPressed()

◆ ClearKey()

◆ DisableAccessibilityShortcutKeys()

◆ DisableWindowsKey()

◆ EnableWindowsKey()

◆ EncodeScanCode()

◆ EncodeUnicode()

◆ EncodeWindowsScanCode()

◆ Flush()

◆ get_StaticRTTI()

◆ GetApp()

◆ GetCurrentFlags()

◆ GetKey()

◆ GetKeyEvent()

◆ GetKeyLowerCase()

◆ GetKeyUpperCase()

◆ GetWindowsPreviousKeyboardHook()

◆ HasBeenPressed()

◆ HasBeenPressedClear()

◆ IsDirectInputActive()

◆ IsPressed()

◆ Lock()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ PeekKeyEvent()

◆ PostKey()

◆ PostKeyDown()

◆ PostKeyEvent()

◆ PostKeyUp()

◆ PostUnicode()

◆ PostUnicodeDown()

◆ PostUnicodeUp()

◆ PostWindowsKeyEvent()

◆ ProcessEvent()

◆ ReadSystemKeyboardDelays()

◆ RestoreAccessibilityShortcutKeys()

◆ ScanCodeToString()

◆ StringToScanCode()

◆ UnacquireDirectInput()

◆ Unlock()

◆ Wait()

◆ WindowsKeyboardThread()

Member Data Documentation

◆ g_StaticRTTI

◆ kBufferSize

◆ m_bDirectInput8Acquired

◆ m_bQuit

◆ m_bRepeatActive

◆ m_DefaultFilterKeys

◆ m_DefaultStickyKeys

◆ m_DefaultToggleKeys

◆ m_KeyArray

◆ m_KeyboardLock

◆ m_KeyboardThread

◆ m_KeyEvents

◆ m_pAppInstance

◆ m_pKeyboardDevice

◆ m_pKeyboardEvent

◆ m_pKeyboardTimerEvent
