Burger::DisplayDirectX9::AdapterInfo Class Reference

Information for a display device. More...

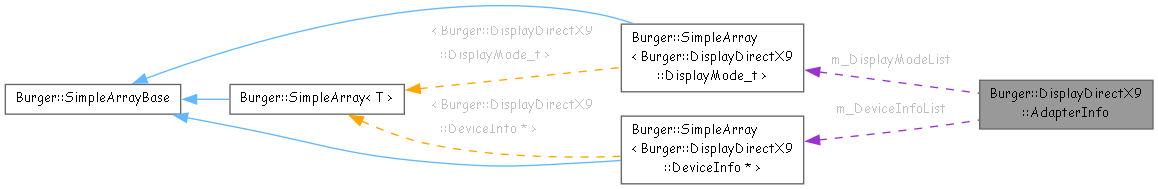

Collaboration diagram for Burger::DisplayDirectX9::AdapterInfo:

Public Member Functions

 AdapterInfo (uint_t uAdapterOrdinal)
 Create a default AdapterInfo.

 ~AdapterInfo ()
 Dispose of an AdapterInfo class.

const _D3DADAPTER_IDENTIFIER9 * GetAdapterIdentifier (void) const
 Get pointer to D3DADAPTER_IDENTIFIER9 record for this adapter.

uint_t GetAdapterOrdinal (void) const
 Get ordinal index for the adapter this class describes.

uintptr_t GetDisplayModeListSize (void) const
 Get number of entries in the display mode list.

const DisplayMode_tGetDisplayModeList (void) const
 Get the pointer to the base of the DisplayMode_t array.

void AddToList (const DisplayMode_t *pDisplayMode)
 Add a copy of a DisplayMode_t to the end of the list.

uintptr_t GetDisplayInfoListSize (void) const
 Get number of entries in the display info list.

DeviceInfo *const * GetDisplayInfoList (void) const
 Get the pointer to the base of the DeviceInfo * array.

void AddToList (DeviceInfo *pDisplayInfo)
 Add a DeviceInfo * to the end of the list.

const DeviceInfoFind (uint_t uDeviceType) const
 Find a DeviceInfo * in the list.


Private Attributes

SimpleArray< DisplayMode_tm_DisplayModeList
 Array of display modes.

SimpleArray< DeviceInfo * > m_DeviceInfoList
 Array of DeviceInfo* with pixel formats supported for rendering.

uint32_t m_AdapterIdentifier [276]
 D3DADAPTER_IDENTIFIER9 record.

uint_t m_uAdapterOrdinal
 DirectX 9 ordinal value for this device.


Detailed Description

Information for a display device.


For each display device, this class contains a list of every supported pixel resolution and a array of DeviceInfo classes describing every GPU/software renderer that is attached to it. Contained in this class is a copy of the D3DADAPTER_IDENTIFIER9 structure obtained from the adapter.

https://msdn.microsoft.com/en-us/library/windows/desktop/bb172505(v=vs.85).aspx

See also
DeviceInfo or BufferFormatGroup

Constructor & Destructor Documentation

◆ AdapterInfo()

Burger::DisplayDirectX9::AdapterInfo::AdapterInfo ( uint_t uAdapterOrdinal)

Create a default AdapterInfo.


All lists are empty on creation

Parameters
uAdapterOrdinalAdapter ordinal index

◆ ~AdapterInfo()

Burger::DisplayDirectX9::AdapterInfo::~AdapterInfo ( )

Dispose of an AdapterInfo class.


Member Function Documentation

◆ AddToList() [1/2]

void BURGER_API Burger::DisplayDirectX9::AdapterInfo::AddToList ( const DisplayMode_t * pDisplayMode)

Add a copy of a DisplayMode_t to the end of the list.


Make a copy of the passed DisplayMode_t and append the copy to the end of the array contained in this class.

Note
This is only available on Windows
Parameters
pDisplayModePointer to the DisplayMode_t to copy.

◆ AddToList() [2/2]

void BURGER_API Burger::DisplayDirectX9::AdapterInfo::AddToList ( DeviceInfo * pDisplayInfo)

Add a DeviceInfo * to the end of the list.


Append a pointer to the DeviceInfo pointer array. This class takes ownership of the pointer and will dispose of it when the class is destructed.

Note
This is only available on Windows
Parameters
pDisplayInfoPointer to the DeviceInfo to take ownership and append to the pointer array.

◆ Find()

const Burger::DisplayDirectX9::DeviceInfo *BURGER_API Burger::DisplayDirectX9::AdapterInfo::Find ( uint_t uDeviceType) const

Find a DeviceInfo * in the list.


Iterate over the DeviceInfo pointer array and return the entry that matches the passed device type.

Note
This is only available on Windows
Parameters
uDeviceTypeType of device to locate
Returns
Pointer to the located DeviceInfo or nullptr if not found.

◆ GetAdapterIdentifier()

const _D3DADAPTER_IDENTIFIER9 * Burger::DisplayDirectX9::AdapterInfo::GetAdapterIdentifier ( void ) const
inline

Get pointer to D3DADAPTER_IDENTIFIER9 record for this adapter.


Note
This is only available on Windows
Returns
Pointer to the contained D3DADAPTER_IDENTIFIER9 structure

◆ GetAdapterOrdinal()

uint_t Burger::DisplayDirectX9::AdapterInfo::GetAdapterOrdinal ( void ) const
inline

Get ordinal index for the adapter this class describes.


Note
This is only available on Windows
Returns
Adapter ordinal index

◆ GetDisplayInfoList()

DeviceInfo *const * Burger::DisplayDirectX9::AdapterInfo::GetDisplayInfoList ( void ) const
inline

Get the pointer to the base of the DeviceInfo * array.


Note
This is only available on Windows
Returns
Pointer to the DeviceInfo * array, it can be nullptr if the array is empty.
See also
GetDisplayInfoListSize(void) const

◆ GetDisplayInfoListSize()

uintptr_t Burger::DisplayDirectX9::AdapterInfo::GetDisplayInfoListSize ( void ) const
inline

Get number of entries in the display info list.


Note
This is only available on Windows
Returns
Number of entries in the display info list, zero means the list is empty.
See also
GetDisplayInfoList(void) const

◆ GetDisplayModeList()

const DisplayMode_t * Burger::DisplayDirectX9::AdapterInfo::GetDisplayModeList ( void ) const
inline

Get the pointer to the base of the DisplayMode_t array.


Note
This is only available on Windows
Returns
Pointer to the DisplayMode_t array, it can be nullptr if the array is empty.
See also
GetDisplayModeListSize(void) const

◆ GetDisplayModeListSize()

uintptr_t Burger::DisplayDirectX9::AdapterInfo::GetDisplayModeListSize ( void ) const
inline

Get number of entries in the display mode list.


Note
This is only available on Windows
Returns
Number of entries in the display mode list, zero means the list is empty.
See also
GetDisplayModeList(void) const

Member Data Documentation

◆ m_AdapterIdentifier

uint32_t Burger::DisplayDirectX9::AdapterInfo::m_AdapterIdentifier[276]
private

D3DADAPTER_IDENTIFIER9 record.

◆ m_DeviceInfoList

SimpleArray<DeviceInfo*> Burger::DisplayDirectX9::AdapterInfo::m_DeviceInfoList
private

Array of DeviceInfo* with pixel formats supported for rendering.

◆ m_DisplayModeList

SimpleArray<DisplayMode_t> Burger::DisplayDirectX9::AdapterInfo::m_DisplayModeList
private

Array of display modes.

◆ m_uAdapterOrdinal

uint_t Burger::DisplayDirectX9::AdapterInfo::m_uAdapterOrdinal
private

DirectX 9 ordinal value for this device.
